Operator duties of an onboard crane transporter


1. Know your vehicle very well, and must know its functions and limitations, as well as some of its special operating characteristics.

2. You should be fully familiar with the contents stipulated in the operation manual of the on-board crane and transporter.

3, should be fully familiar with the lifting plan of the truck. Must understand all signs and warnings; To be able to calculate or determine the actual lifting capacity of the crane transporter.

4, according to the manufacturer’s requirements, regular inspection and maintenance with the car lifting transport.

5. Do a good job in the lifting and transportation work log, and record in the log details of all testing, maintenance and maintenance of lifting and transportation on board.

6, find the load, install the lock, and make clear the specific position of the load. Although the operator is not responsible for determining the weight of the load, if he does not verify the weight with the supervisor, he is responsible for the on-board lifting and transport and all its consequences.

7. Consider all factors that may affect the lifting capacity of the vehicle, and adjust the lifting weight accordingly.

8. Know the basic procedure of how to install the rigging on the load and ensure the implementation in the specific operation.

9. Keep good communication with signalmen.

10, smooth, safe operation with the truck lifting transport.

11, with the car lifting transport no one operation, should stop, and the correct operation.

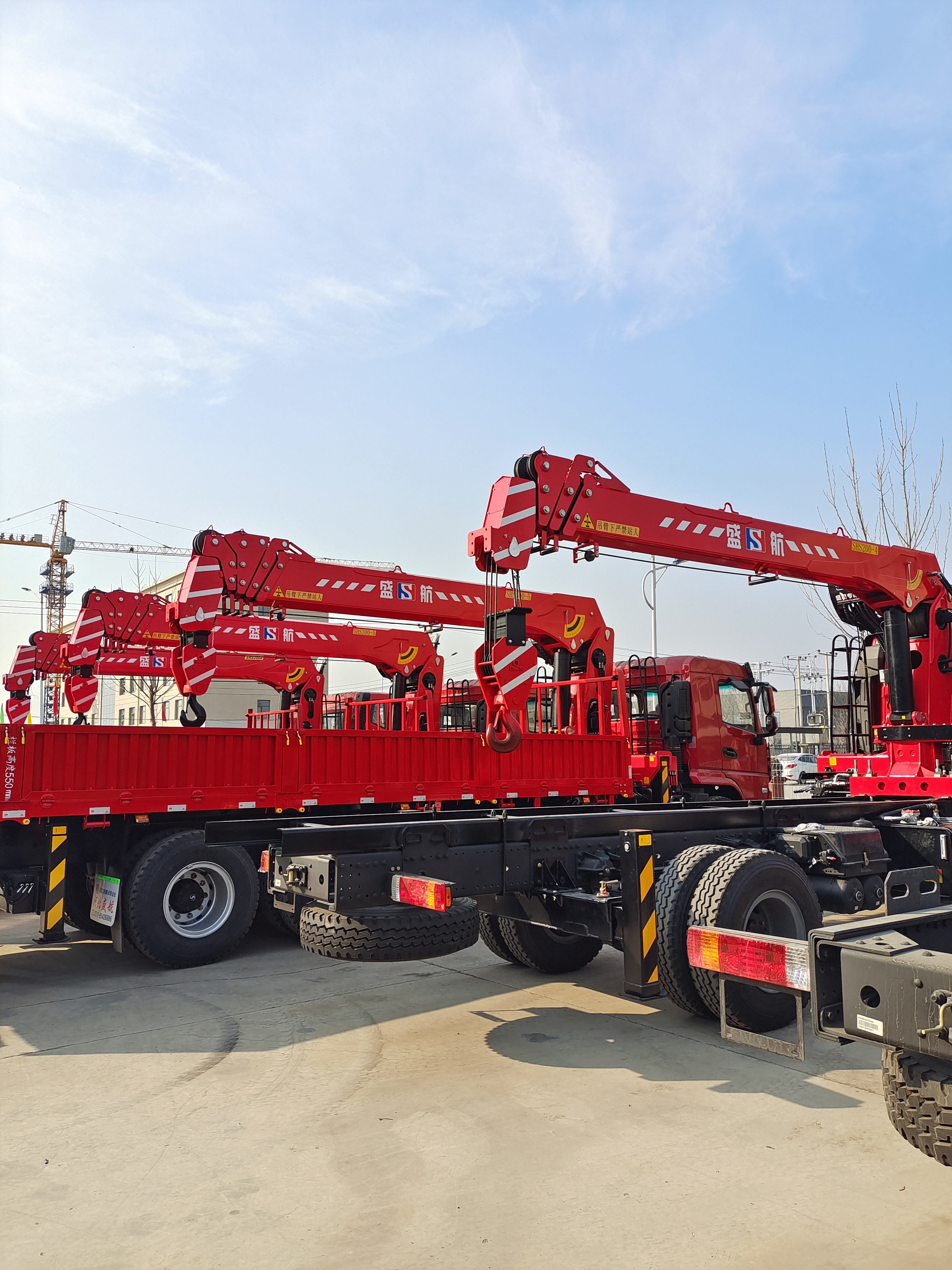

Onboard crane transporter components: by two kinds of car chassis, cargo box and crane three parts.

Description of special functions for crane and transporter: Working range 7.180m, 950KG, maximum working radius (m):7.180.

Working range 5.630m: 1250KG; Maximum height (m):9.4

Working range 4.030:1900KG; Dead weight of crane: 1250KG

Working range of 2.000m, 4000KG, rotation Angle (degrees) : positive and negative 360 degrees

Maximum lifting mass (KG) 4000KG; Number of boom segments: two telescopic boom segments;

Maximum lifting moment (T. M) : 8
